Waterproof Solder Wire Connector Kit
PRODUCT DETAIL
Connect and Seal your Wires without crimping or soldering
IP67 Waterproof
Fuss free and Safe connection in seconds!
Variety of sizes for your boat, automobiles or any DIY electrical projects.
Comply with all Relevant Standards: ROHS, ISO 9001:2008, SGS and CE standards
Done in 3 Easy steps

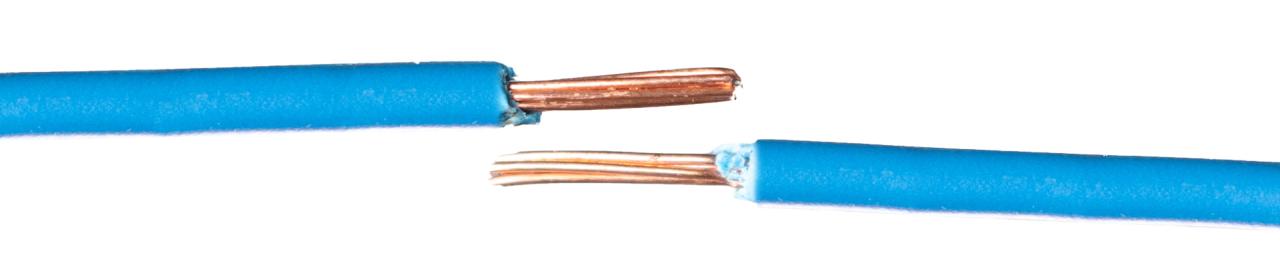

Step 1 : Prepare the cables
Strip wire insulation 1/3 inch on both wire ends.
Choose the right connector size for your wires

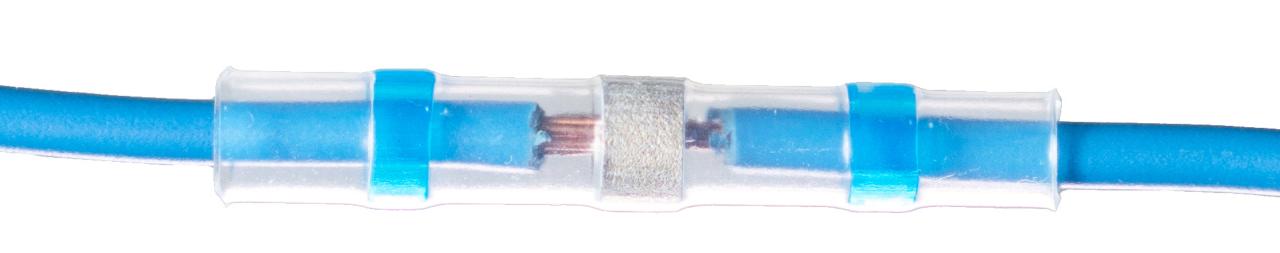

Step 2 : Position Wire into Connector

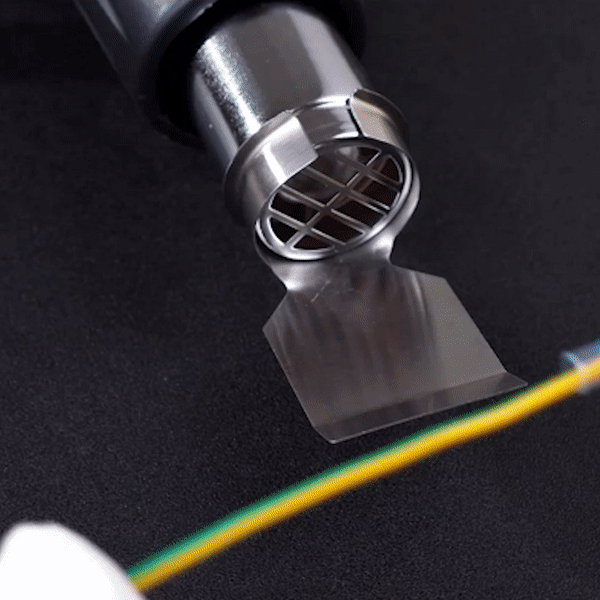

Step 3 : Apply Heat
USe a heat gun or simply a lighter to melt and shrink the connector tubing.
Allow the terminal to cool down.

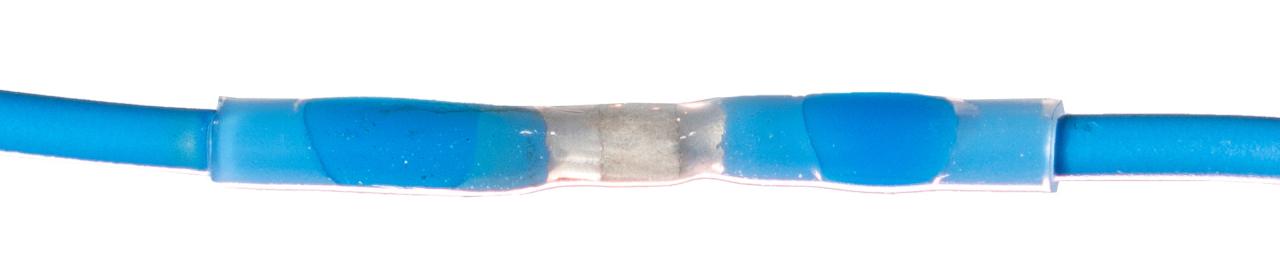

Your waterproof and secured connection is now complete
Wire connectors colors
EASY IDENTIFICATION
Color-coded tubing makes it easy to identify the right size connector for every application. Measure your wire, and easily choose the right connector by looking at the wire size chart on the box.
PERFECT FOR PROFESSIONAL OR EMERGENCY USE
- Boats
- Automobiles
- Home DIY wirings
- Audio Systems
- Electrical Projects
Specifications
- Minimum Shrink Temperature
80°C / 176°F
- Minimum Solder Melting Temperature
138°C / 280°F
- Shrink Ratio
2:1
- Material
Dual-walled polyolefin tubing with solder sleeve
- Waterproof Rating
IP67

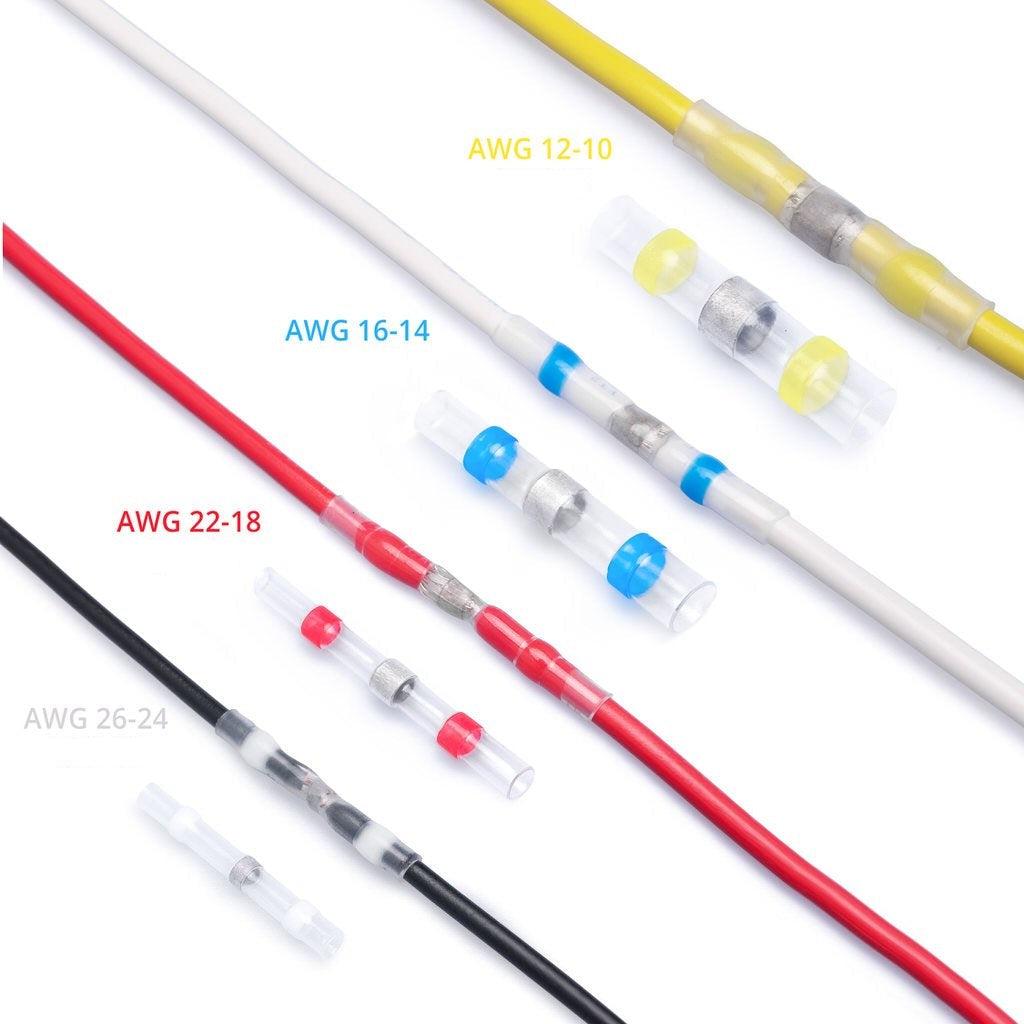

- Cable/Wire Sizes
White : 26-24 AWG / 0.25-0.34mm²
Red : 22-16 AWG / 0.5-1.5mm²
Blue : 16-12 AWG / 1.5-2.5mm²
Yellow : 12-10 / AWG 4mm²
